Quick Details
- Place of Origin:Henan
- Brand Name:sitong cable
- Model Number:aluminum concentric cable 2*4+4awg
- MOQ:1km
- Certificate:ISO90001
- Voltage:0.6/1KV
- Application:construction
- Standard:BS IEC ASTM DIN
- Material:8000 Series aluminum alloy conductor
- Package:roll
- Port:qingdao or tianjin
- Conductor Matel:aluminum
Overview
network until the meter panel (especially where it is required to prevent "black" losses
or electric power robbery), and as feeder cable from the meters panel until the panel
or general distribution panel, just as it is specified in the National Electrical Code.
This type of conductor can be used in dry and wet places, directly buried or outdoors;
its maximum temperature of operation is 70°C(PVC or PE Insulation) or 90 ºC(XLPE
Insulation) and its voltage of service for all the applications is 600 V.
| Item | Description | Unit | Data |
| 8000 series Aluminum Alloy Concentric Cable 2×4+4AWG | |||
| 1 | Phase of phase cores | ||
| 1.1 | Number of phase cores | 2 | |
| 1.2 | Material | 8000 series Aluminum Alloy Conductor | |
| 1.3 | Phase conductor cross-section | mm2/AWG | 21.12/4 |
| 1.4 | Strands number of conductor | 7 | |
| 1.5 | Dia.of single wire | mm | 1.96±0.02 |
| 2 | Insulation | ||
| 2.1 | Material | Extrude XLPE cover on conductor | |
| 2.2 | Nominal thickness | mm | 1.14 |
| 3 | Bedding | ||
| 3.1 | Material | Non-woven tape | |
| 4 | Concentric conductor | ||
| 4.1 | Material | 8000 series Aluminum Alloy Conductor | |
| 4.2 | Cross-section | mm 2 /AWG | 21.12/4 |
| 4.3 |
Strands number of conductor |
18 | |
| 4.4 | Dia.of single wire | mm | 1.23±0.01 |
| 5 | Outer sheath | ||
| 5.1 | Material | PE | |
| 5.2 | Nominal thickness | mm | 1.14 |
| 6 | Electrical specification | ||
| 6.1 | Voltage U 0 /U | V | 600/1000 |
| 6.2 | Test voltage | V | 3500 |
| 6.3 | Standard | Refer UL854 | |
After more than 10 years of development, our customers have spreadto more than 40 contries and regions around the world,And more an 50% are old customers. The concentric cable ,ABC cable ,bare conductor AAC,AAAC,ACSR,GSW,Control cable,electircal wires,power cable etc.are more favorited ba them.We are proud of our good quality-----SITONG CABLE.
Zhengzhou Sitong Cable Co.Ltd. is founded by one of the most professional manufacturers.We specialize in producing and exporting all kinds of wires and cables.We have advanced tech-staff, advanced equipment and 30year's experience engineer.Welcome to visit at any time.Since we were founded, we have been built favorable business relationship with many customers from all over the world. We comply with the principle - “honest management,practical and pioneering spirit ,pursuit of excellence”.We are willing to collaborate with our friends all over the world and build brilliant future with the perfect quality of products and service.
Our company has single wire area,stranding area,extruding area,armouring area,cabling area,package area, and has its own laboratory. There are 4 tubular stranding machines in our factory. All of these are seven strands of wire, can stranding the wire to left and right two directions. The range and speed of the strand wire are different. We have 4 extruded molding machines totally. The two is 90, one is 65 and the other is 120 .(Note : 90, 65, 120 means the diameter of the screw tube on the extruder. )Insulation thickness ranges from 1 mm to 4 mm.the color master batch of 2%-3% XLPE PE.Process: The screw and insulation materials are squeezed together by the extruder. Next printed with the print machine or inkjet machine, then cooled through the sink, and eventually entangled on the axle directly.etc.
Section projector : test thickness , min thickness , average thickness
Aging test :hot elongation ,test 15 minute
Tensile strength testing equipment :tensile strength and elongation.etc.

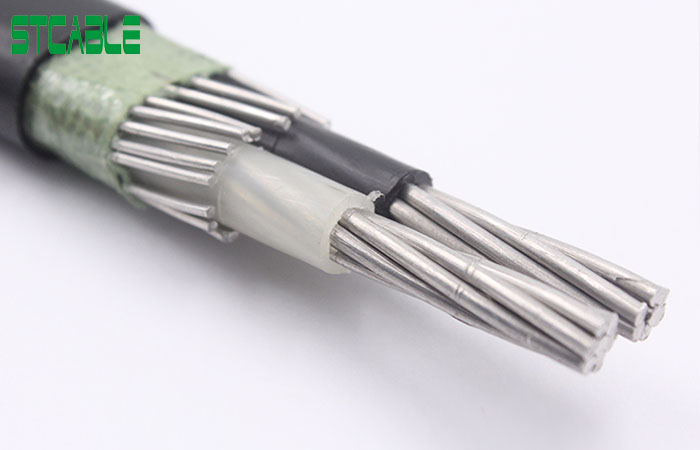

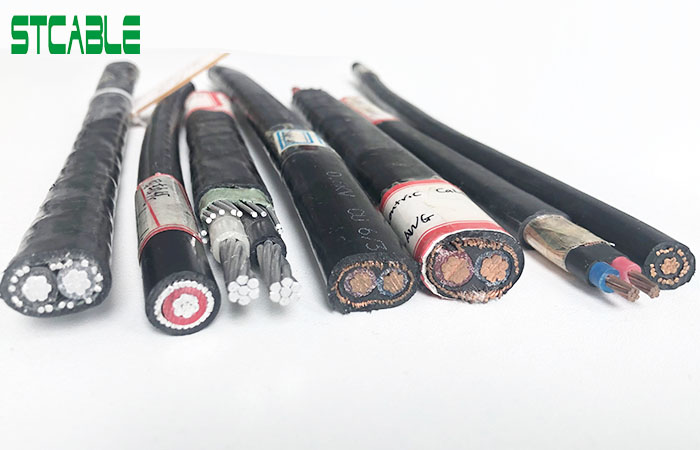

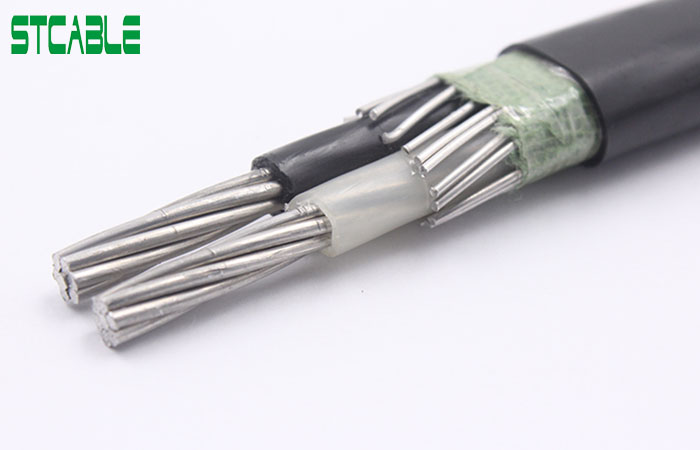

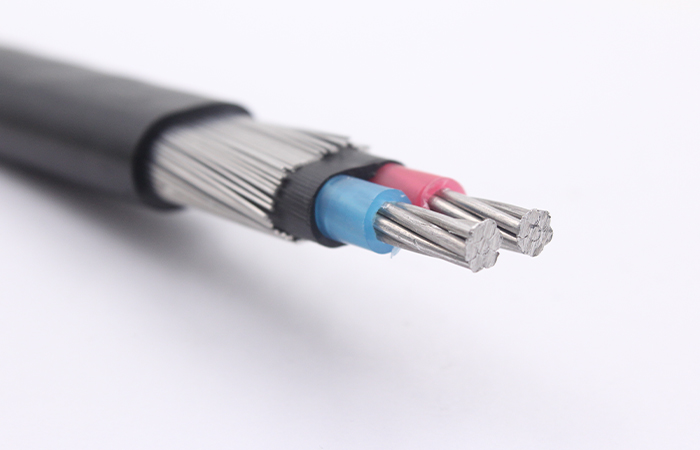

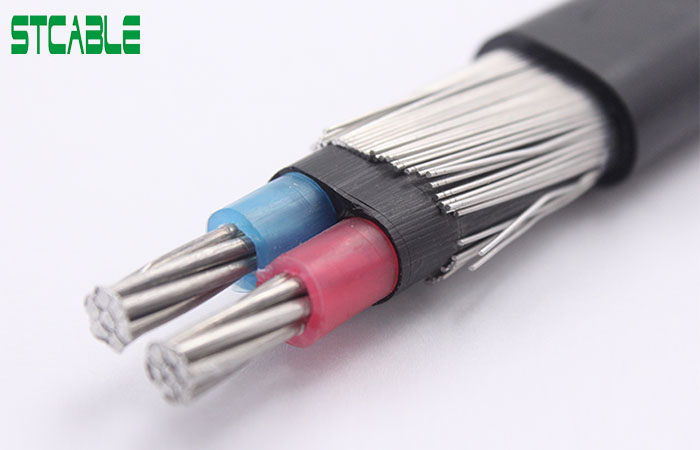

Product Photo
